Agricultural Mini Crawler Tractor 35hp For Farmland Transformation

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation
Agricultural Mini Crawler Tractor 35hp For Farmland Transformation
Agricultural Mini Crawler Tractor 35hp For Farmland Transformation
Product Details:
Place of Origin: SHANDONGYANTAI
Brand Name: SDHANYUE
Certification: CE
Model Number: HYCT-25D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2580/Set
Packaging Details: Packed with wooden Box or customized
Delivery Time: 7-10 works day
Payment Terms: L/C, T/T,
Supply Ability: 10000set/Month
Contact Now
Detailed Product Description
Name: Crawler Tractor Model: HYCT-25D
Engine Brand: CHANGFA/QUANCAI Max Horsepower(R/M): 25/2200
Tank Capacity (L): 15 Number Of Gear: 6F+2B
Max Walking Speed (km/h): 15 3Tail Output Speed (R/M): 220
Outline Size (MM): 2700*780*1060 Crawler Track Width(CM): 180*72*36
Chassis Height From Ground (CM): 20 Gross Weight (KG): 860
Net Weight (KG): 760
High Light:

Mini Crawler Tractor 35hp

,

Agricultural Mini Crawler Tractor

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 0

25HP track rototiller is custom-made full gear transmission. The engine is directly connected to the walking transmission and the rear rotary tillage transmission.

The front of the walking transmission has 3 forward gears, 1 backward gear, and the rear of the working connection box, which can be matched with rotary tillage, ditching and a large number of farm tools.

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 1

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 2



Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 3

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 4

The driving wheel is made of steel through heat treatment, which is strong and wear-resistant.Left and right steering adopts tie rod mechanism, easy to operate, not easy to damage, malfunction.

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 5

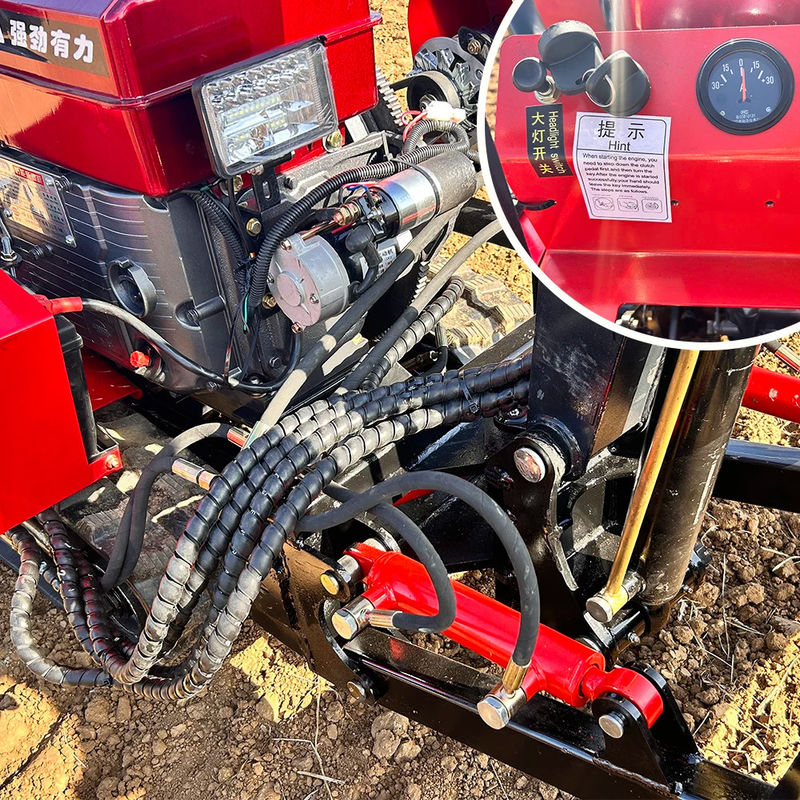

The line is made of copper wire, with many insurance, easy to operate in the form of plug. the line is protected by the thickened plastic soft shell so aging and damage caused by short circuit will not happen at all.



Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 6

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 7

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 8

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 9

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 10

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 11

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 12

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 13

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 14

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 15

Agricultural Mini Crawler Tractor 35hp For Farmland Transformation 16

1. Are you factory or trading company?
We are factory which produces crawler tractors, lawn mowers and many construction machines such as loaders, excavators, wheel tractors, forklift and others.
2. What's your company advantages?
As the leader of lawn mowers and construction machines , we have exported to European market, familiar with lawn mowers and construction machines and can recommend to clients right products.
3. Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
4. What's your delivery time?
5 days for sample, 7-10 days for large order.
5. How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system.All of our products are 100% inspected before shipment
6. What's your product warranty?
The warranty time of the machine is one year.
7. If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM and ODM service.
